Enclosure
Activated with aicam-enclosure. Spec: openspec/changes/add-thor-enclosure/.
Print: aicam-print (human, Anycubic resin).
First article
Wrap the AGX Thor Developer Kit, not the SOM:
- 243.19 × 112.40 × 56.88 mm
- Leave kit fan / TTP path open
- Boss or clamp for the body camera on the front
- Cable exits: 5GbE, QSFP, USB-C, power, body CSI/GMSL if present
Production SOM lid is a later metal article, not resin. Product shape is still Thor inside the camera body (T4000 + Rogue-T5 + CSI sensor), not the AGX kit and not a PYXIS bolted onto a brick. Thermal architecture is a hold until we measure T4000 + Rogue-T5 + ATS on the TTP (TDG-12271-001 v1.3): prefer heatpipes / vapor chamber / a real radiator over lots of fans. 70 W fanless in a cine envelope is not honest; record-only / drop-AI is. See references/THERMAL.md and CAMERAS.md. Sats stay off-body PoE.
CAD (first article, 2026-09-01)
Blender 5.0 via addon socket :9876 (Grok MCP blender server was not
in this session; same protocol). Script: cad/build_agx_shell.py.
| File | What | Span (mm) |
|---|---|---|
| cad/agx_thor_shell.blend | Kit dummy + two halves | — |
| cad/agx_shell_front.stl | Camera-boss half | 152.3 × 119.8 × 64.3 |
| cad/agx_shell_rear.stl | Cable-exit half | 130.3 × 119.8 × 64.3 |

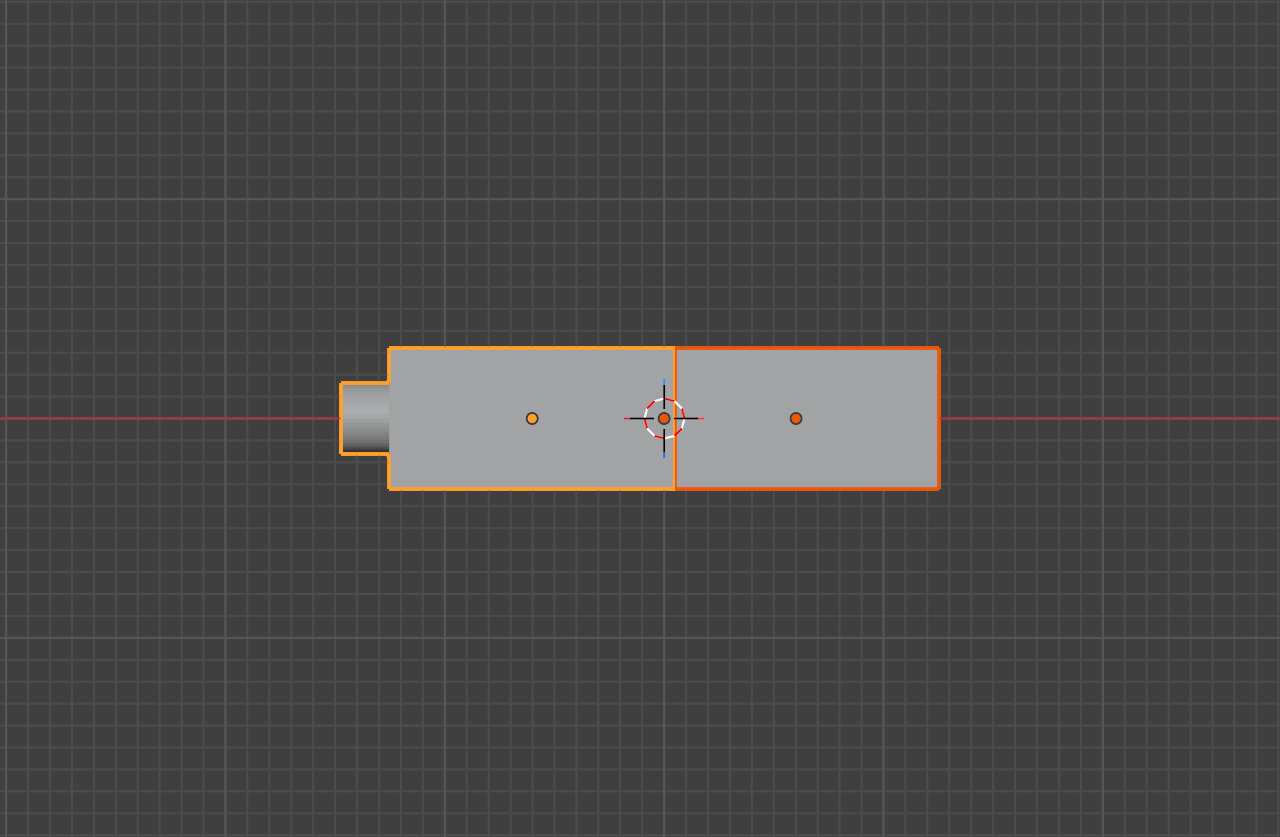

| cad/preview.png | Viewport | — |
Wall 2.2 mm, 1.5 mm kit clearance. Front has a 32 mm OD / 18 mm bore boss. Rear has RJ45 / QSFP / DC cutouts. Top vent slots. Manifold.
Print: two parts so they fit a ~192 × 120 mm resin bed. Width 119.8 mm is tight on a 120 mm vat — rotate or knock 0.5 mm off the walls if the slicer complains. Resin is a fit-check, not a heat sink. Leave the TTP path open.
Production SOM lid is metal, after a TTP measurement, not this resin print.
